| Light Source | 6V,10W tungsten halogen lamp, it can work over 5000 hours |
| Wavelength Filters | 400-750 nm |
| Optical Filters | 4 Standard filters: 405,450,492, 630 nm, Maximum 8 Filters |
| Measuring Methods | Single wavelength, dual wavelength two points method, dynamic assay, multiple wavelengths |
| Blank Ways | Single well blank, Multiple wells blank, rows and column blank |
| Calculation Method | Absorbance single point calibration, Linear regression, quadratic curve, four parameters equation |
| Measuring Speed | Single wavelength < 3 second/96 wells, dual wavelength <9 seconds/96 wells |
| Measuring Range | 0.0000-4.50000Abs |
| Resolution | 0.0001A |
| Linearity | ± 0.5% or |
| Repeatability Difference | < 0.1% or ±0.0025A |
| Rows & columns Differ. | < 0.01A |
| Display | Built in XP System, 8” touch screen show whole micro plate results and calibration curve |
| Save Information | More than 300 test programs, results of 50 piece of 96 well, 100000 test results |
| Interface | 4 USB two way communication interface, 1RS232,1 VGA, 1 Keyboard 1 mouse connector |
| Environment | Power supply 12V DC (100-240V) wide input voltage range) Temperature: 5°-40°C |
| External Dimension | 52.5cmx42.0cmx26.0cm |
| Net Weight | 9 Kg. |

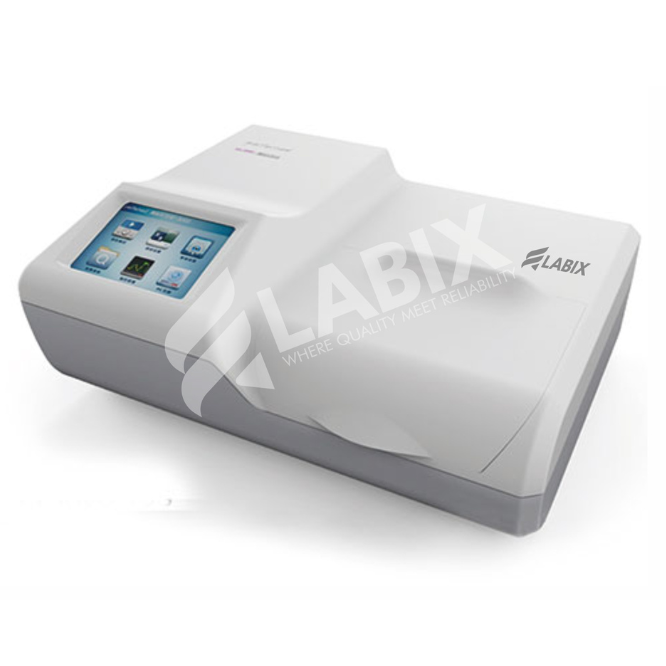

Microplate Elisa Reader
Increase productivity in your laboratory with the Microplate ELISA Reader and just about any absorbance-based assay for accurate and efficient use in an ELISA-based application. Clinical diagnostics, food safety testing, and biomedical research are needed to get quick and dependable results with ease.
