| Measuring Principle | Visual in terms of international colour scale units |
| Modes | Transmittance, reflectance |
| Measurement Range | 0.1-79.9 Red, 0.1-79.9 Yellow, 0.1-49.9 Blue, 0.1-3.9 Neutral |
| Minimum Reading | 0.1 |
| Resolution | 0.1 colour scale unit |
| Viewing System | Fully adjustable |
| Light Source | Incandescent lamp |
| Illuminant | Approximates to daylight |
| Path Length | Up to 180 mm |
| The Diffuse Reflect Activity | |
| Of White Plate Amplification Of Magnifiers | > 80%, 1.9 x |
| The dimension of | 10 x 20 x 40 mm, 25.4 x 20 x 40 mm |
| Colorimetric utensil | 133.4 x 20 x 40 mm |
| Power Supply | AC 220V 50 Hz |
| Power Watts | 50W |
| Weight (gross) | 13kg |
| Overall Dimensions | 620 x 440 x 300mm (LxBxH) |

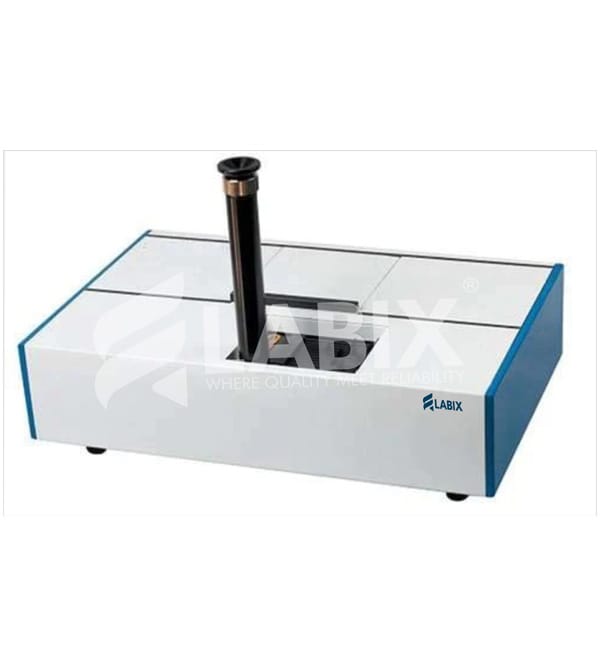

Visual Calorimeter
Visual Calorimeter is a very sensitive analytical instrument intended for rapid and accurate estimation of concentration of the substance by color intensity. This instrument can be used for chemical, environmental, food, and pharmaceutical analysis. It offers a relatively simple but effective means for the determination of the concentration of solutions through visual comparison methods.
