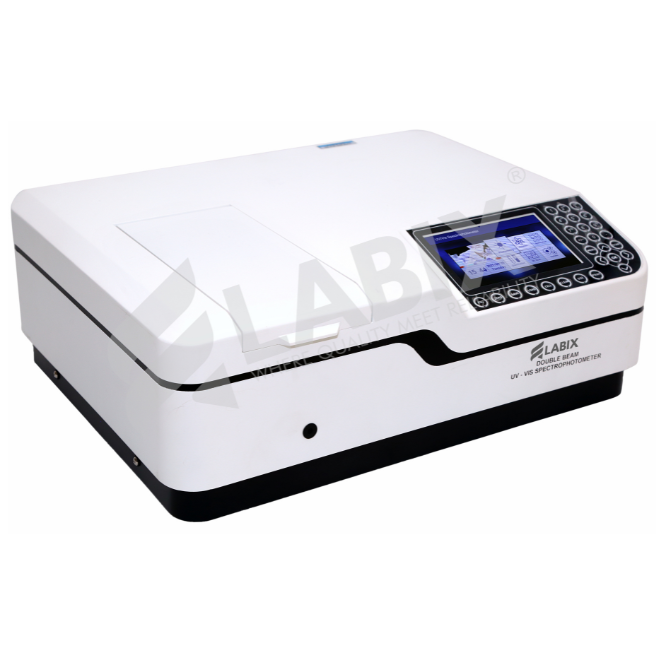

Double Beam UV-VIS Spectrophotometer

Model No: LBX-701

Our Spectrophotometer provides precise and reliable optical measurement for a wide range of applications in research, quality control and clinical laboratories. Ideal for analyzing samples in chemical, biological and environmental testing offering accurate analysis of light absorption and transmittance.

Function	Basic, Wave length Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein
Wavelength Range	190-1100nm
Spectral Bandwidth	1.0nm
Optical System	Double Beam, Grating 1200 lines/mm
Wavelength Accuracy	±0.1nm
Wavelength Repeatability	±0.1 nm.
Scanning Speed	HI, MED & LOW, MAX. 3600 nm/min
Photometric Accuracy	± 0.3 %T or ± 0.002 A/h@1A
Photometric Range	%T: 0-200% Abs: -0.3 to 3A Conc.: 0-9999 C
Stray Light	≤0.03 %T @ 220nm & 360 nm
Stability	±0.001 A/H @ 500 nm
Display	7 Inches TFT Color Screen
Baseline Flatness	±0.001A/h (200-1000nm)
Sample Compartment	2 cell holder 10 mm path-length. (50 mm & 100 mm path length optional at extra cost.)
Light Source	Halogen & Deuterium Lamps (Pre-Aligned)
Output Ports	USB Drive, USB Host & RS232
Power	230 V ± 10% AC, 50 Hz
Dimensions	Instrument: 810 x 660 x 390 mm (LxBxH) Approx.
Weight	Instrument: 27 Kg. (Approx.)

Double Beam Optics
7 Inches TFT Color Screen
Auto Wavelength Setting
On-screen Standard and Kinetic Curve Display
Tungsten/Deuterium Lamp can be turned ON/OFF Individually to Extend Lifetime.
Application Software provides complete control of the instrument from a
computer through the built-in-USB Port
Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNA /Protein modes
Pre-aligned design makes it convenient to change Lamps
Large Sample Compartment can accommodate 5-100 mm path-length cuvettes with optional holders.

Standard Accessories
