| General Range | Serum Range | Urine Range |
| ppm | meq/l | meq/l |
| Na : 0-100 | 0-200 meq/l, 1:100 dil. | 0-250 meq/l, 1:100 dil. |
| K : 0-100 | 0-10 meq/l, 1:100 dil. | 0-100 meq/l, 1:100 dil. |
| Ca: 0-100 | 0-10 meq/l, 1:2 dil. | |
| Li: 0-100 | 0-2 meq/l, 1:5 dil. | |
| Ba: 30-3000 | (all meq values are claimed with appropriate dilution) | |
| Sensitivity | General Mode: Na: 0.5ppm, K: 0.5ppm, Li: 0.5 ppm, Ca: 15ppm Ba: 30ppm | |
| Filters | Na & K Supplied (Ca, Li & Ba are optional at extra cost) & factory fitted only | |
| Resolution | 0.1 ppm / 0.1 meq. | |
| Reproducibility | <1% coefficient of variation for 20 consecutive samples using 10ppm Na set as Maximum Standard up to 3% CV for 20 consecutive samples of Concentrations between 50 to 199 ppm for Barium. | |
| Linearity | <2% error when 3 ppm Na/K and 5 ppm Li are set as Maximum std. | |
| Curve Fit Accuracy | ±2% of FS | |
| Display | 128 x 64 Graphical LCD | |
| Average Time | In-built in software | |
| Flame System | LPG & Dry oil free air | |
| Detector | Photodiode | |
| Calibration | with up to 25 standards of user choice with curve fitting software (5 of each element). Multiple calibration curves can be stored in the memory | |
| Aspiration Time | 3ml per minute | |
| Gas Control | Adjustable With Knob | |
| Flame Failure | Auto detection | |
| Gas Cut Off | Automatic | |
| Ignition System | Auto Ignition | |
| Automiser | Axial flow type | |
| Dimensions | Instrument: 365 x 245 x 220 mm Approx. (LxBxH) | |
| PC Interface | USB | |
| Weight | Main Unit: 8 Kg. (Approx.) | |
| Power Supply | 230 V AC 10%, 50Hz | |
| Accessories | Air Compressor, Chimney, Sample Beakers, Manual Air & Gas Tubing, USB Cable, Mains Lead. | |

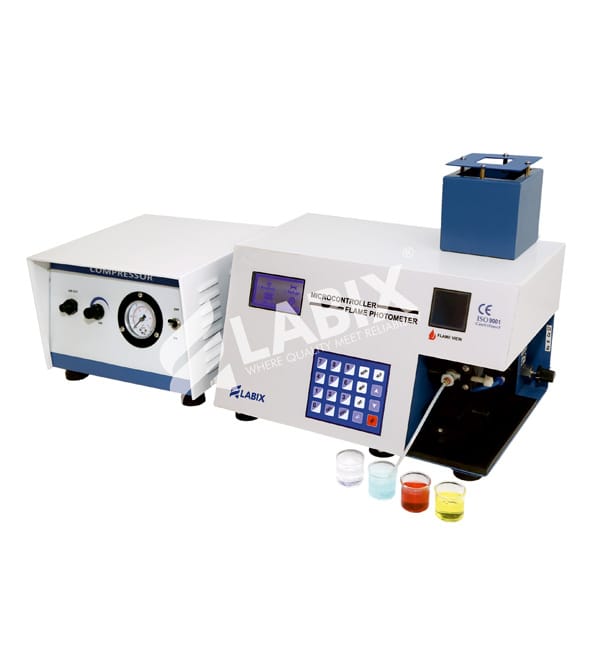

Microprocessor Flame Photometers
We offer a Microprocessor Flame Photometer, a state-of-the-art instrument made to perform rapid and precise determination of alkali and alkaline earth metals like Sodium, Potassium, Calcium, and Lithium. The microprocessor-based control system ensures very high sensibility, prompt performance turnaround, and exceptional accuracy in the use of clinical, industrial, agricultural, and research orientations.
- Auto Gas Cutoff Facility
- Auto Flame Failure Detection Facility
- Inbuilt Thermal Printer (in Model 629)
- UP Based with printer interface
- Five Element Measurement in Single Aspiration of the Sample
- Curve Calibration Programmability using Maximum of 25 Standards
- Data Processing Through Curve Fitting Techniques Least square, quadratic
- Multiple Calibration Curves Saving Facility
- Sample Data Storage Facility
- Online Help Key
- Printer Attachment Facility
- Measurement in ppm & meq
- Useful For Both Medical & Soil Testing Applications
- Setup Storage Facility up to 10 setups Files
- Supplied with Compressor Unit
